Quick Details

  • Seats: 21 - 40
  • Emission Standard: Euro 3
  • Transmission Type: Manual
  • Max Speed: 91 - 110 km/h
  • Steering Position: LHD
  • Fuel Type: Diesel
  • Dimensions (L x W x H) (mm): 6500x2200x2570(mm)
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Hengtong
  • Model Number: CKZ6650 Bus Assembly Production Line
  • Product Name: CKD SKD Bus Assembly Production Line
  • Length(mm): 6500
  • Width(mm): 2200
  • Height(mm): 2570
  • Wheel base F/R(mm): 1750/1586
  • Tread(mm): 3650
  • Max. Speed(km/h): ≥95
  • Overhang F/R(mm): 740/2060
  • Approach/Departure (°): 10/9
  • Max. Grade Ablitiy(%): ≥20

Packaging & Delivery

Packaging Details Roro shipment
Delivery Time within 45 working days

CKD SKD Bus Assembly Production Line



1. diesel engine --  YC4F115-30 - 2.659L;

2. front mounted engine, rear wheel drive;

3. manual transmission;

4. 19+1 seats, can take as many as 38 passengers including the standing persons.



CKZ6650 Bus Specification

DimenssionLength(mm)6500Engine DataEngine ModelYUCHAI (YC4F115-30)
Width(mm)2200Engine Type Four cylinder in line, water cooled, 4stroke
Height(mm)2570
Wheel Base (mm)3650Displacement(L)                         2.659
Wheel Tread F/R(mm) 1750/1586Max. Power(KW/rpm)85/3200
Overhang F/R(mm)740/2060Max. Torque(N.m/rpm)300/2200
Approach/Departure  (°)10/9Fuel TypeDiesel, Euro III
PerformanceChassis ManufactureDongfengMax. Speed(km/h)≥95
Chassis ModelEQ6650KN3ACMax. Grade Ablitiy(%)≥20
Engine PositionFront MountedMin. Turning Diameter(m)≤16
Brake distance(m) (V=30km/h)≤10Fuel Tank Capacity(L)90
Curb Weight(Kg)3800Max. Total Weight(kg)6000
Axle F/R(kg)2300/4300



About us

We are an overseas marketing investment development Dept,  a professional  China Auto development Dept and Manufacturer.  Our group is focusing on the the vehicle assembling project throughout the world, so far, we have successfully set up several such auto assembling plants in Syria, Ghana, Seychelles, Vanuatu for pickup, SUV, bus, moke assembling. Bus Assembly Production Line project cooperation way includes joint venture cooperation, turnkey project model,cooperation agreement,trade cooperation partner and so on....



Why Set Up Oversea Bus Assembly Production Line  Plant?

In order to further reduce transportation costs and seize the opportunities to develop international bus market, cooperating to set up local buses assembly plant has become the only way for Chinese bus makers to march into international market.

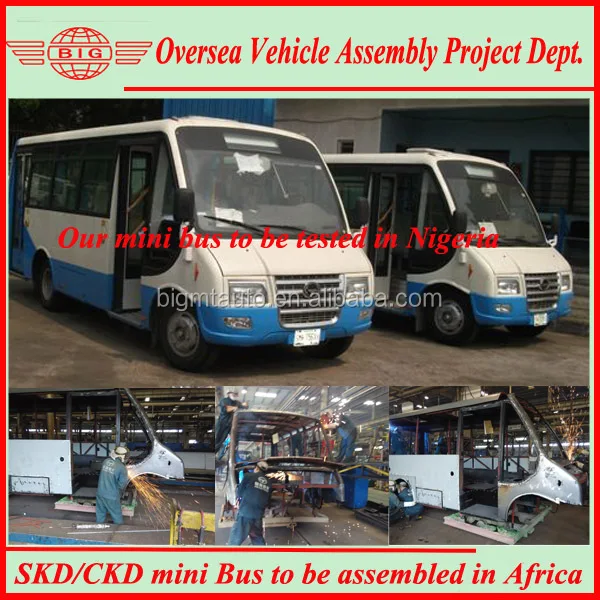

1. Set up oversea assembly line with CKD/SKD Bus Assembly Line

2. Investment in Bus assembly lines

3. Workforce & machinery

4. Local market sales and service

We propose and provide "REPAIR & MAINTENANCE" After-Sales Service:
1) Found a professional bus "Repair & Maintenance" service company to ensure the After-Sales Service;
2) Spare parts supply;
3) Driving & repairing training guidance;
4) Technical advisory and training;
5) Market data feedback and disposing;
6) The most important - Technology Support.



We hope that through cooperation with local partners to form a long-term strategic cooperation relationship, we can assemble, install and produce the large and medium-sized buses to meet the needs of the international market, develop overseas markets, and grasp the opportunities for the development of buses market. A strong competitive strength in international market created by both parties will bring vast economic benefits to both parties.



Bus Assembly Line Project Partners Requirement:

1) Fund: over 1 million USD;

2) Land & Workshop: over 15000-20000 square meters land including 5000 square meter workshop at least;

3) Sales Channel: Good Automobile Sales Channel, Familiar with Automobile Industry and Its Business.

4) Custom Duty: the difference gap between auto spare part CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%, for example, import tariff on CBU is 35%, it must be 5% or zero on CKD.

The above information can be summarized as the following table in short

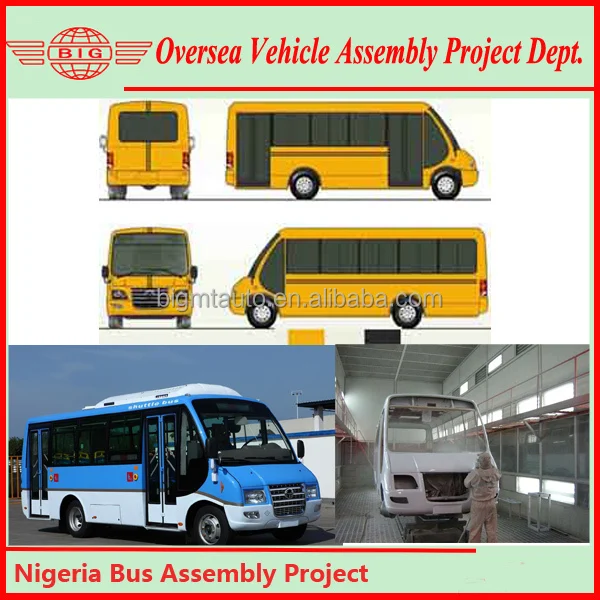

Comparison of the Vehicle Import (take Nigeria the 6650 series bus as an example)
statustariff rateloading units in a 40HQfreight on per unit
CBU (complete built unit)35%1 unittotal cost for one 40HQ
SKD (semi-knocked down)5-10%1.8-2 units on average in quantityaround half of the cost for one 40HQ
CKD (completely knocked down)0%3-4 units on average in quantityaround a quarter of the cost for one 40HQ



What Can We Support in Bus Assembly Production Line Project?
We can support you the technology train support, equipment support...  Engineers from your country will be sent to China to start studying the industry skill of bus according to your country assembly plant condition. So we will start with easy car assembly line, then complicated car assembly line.

If you have interest in bus project or other vehicle assembly, we can supply you the auto spare parts with competitive car assembly line price, and we now sincerely invite you to join us to create the bright future.

If you lack of fund, we advise to start from common trade, then turnkey project when fund permitting. Or, we support you related project information and you can find your friends or suitable persons as your cooperation partners for project.
