Quick Details

  • Seats: 11 - 20
  • Emission Standard: Euro 2
  • Transmission Type: Manual
  • Max Speed: 91 - 110 km/h
  • Steering Position: LHD
  • Fuel Type: Diesel
  • Dimensions (L x W x H) (mm): 6500x2200x2570 mm
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Hengtong
  • Model Number: 6650
  • Item: Bus Auto Parts And Production Lines For Sale
  • Seat: 19+1,19 plastic passenger seat, 1 adjustable driver seat
  • Displacement: 2.7 L
  • Power: 85 KW/115 HP
  • Engine Position: Front Mounted
  • Curb Weight: 3800 KG
  • Fuel Tank: 90 L
  • Service Facility: Fire Extinguisher,fan,microphone
  • Vehicle Assembly Service: Yes
  • Noted: available to customize bus on the base of your country

Packaging & Delivery

Packaging Details: nude package
Delivery Detail: 60

  Bus Auto Parts And Production Lines For Sale





Our group aims to help our customer build a Bus assembly plant in South Africa. Operations include stamping, plastics injection molding, welding, painting, sub-assembly and assembly. We can guide you assemble all kinds of Bus in a best money-saving way.



It is a flexible and small-investment-start auto plants. The plant's capacity could later be expanded SKDI, CKD bus parts depending on demand. The plant will spur investments. This investment will trigger others, those of their suppliers.







What we can service?



1. vehicle SKD, CKD kits

2. vehicle assembly equipment, installation service and maintenance

3. motor vehicle assembly technical assistance(engineers' sending, workers' training, etc)





Currect Assembly Vehicle



1. diesel & gasoline pickup is available for LHD and RHD

2. diesel & gasoline SUV

3. 8 seats family van & 15 seats commercial vehicle

4. gasoline & electric sightseeing mini moke car

5. city bus, long distance bus, minibus

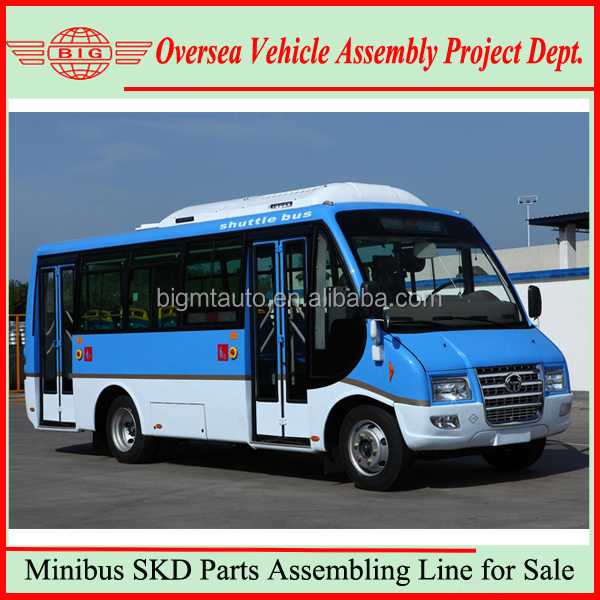

Here we recommend this minibus to assemble in Africa. This minibus is 2.7 L Diesel engine, 19+1 seats. It is available to customize seat layout, color on the base of your country.





It has been to Nigeria and approvaled testing. The next step is to assemble it in Nigeria.





DimenssionLength(mm)6500Engine DataModelYUCHAI YC4F115-30
Width(mm)2200TypeFour cylinder in line, water cooled, 4stroke
Height(mm)2570
Tread(mm)3650Displacement(L)                        2.659
Wheel base F/R(mm)1750/1586Max. Power(KW/rpm)85/3200
Overhang F/R(mm)740/2060Max. Torque(N.m/rpm)300/2200
Approach/Departure (°)10/9Fuel TypeDiesel,Euro III
PerformanceChassis ManufactureDongfengMax. Speed(km/h)≥95
Chassis ModelEQ6650KN3ACMax. Grade Ablitiy(%)≥20
Engine PositionFront MountedMin. Turning Diameter(m)≤16
Brake distance(m)           (V=30km/h)≤10Fuel Tank Capacity(L)90
Curb Weight(Kg)3800Max. Total Weight(kg)6000
Axle F/R(kg)2300/4300

ItemStandard ConfigirationOptional
ChassisClutchsingle dry plate,disphragm spring
TransmissionDongfeng 5S410,manual transmission
Rear Axle4.3T, ratio:4.875
Front Axle2.3T
FrameGroove Shape crossbeam
Suspension SystemMulti Leaf Spring(F 8/R 10),telescope shock absorber
Steering Systemhydraulic power steering
ChassisBrake Systemdual circuit pneumatic brake,energy storage spring parking brake
Tire7.0-16-12 bus tire 7.0-16-12
Electric System24V, Single Wire, Minus Earth
StarterStandard with the engine
Battery/Generator6-QA-150AH, 2pcs / Standard Genrator with the engine
Other
BodyBody StructureSemi-Integral load body, Steel Frame, Pre-stress Stretched Panel Skin
Interior Trimming          Soft Inner Trimming
Door& Door Pumpmiddle and rear pneumatic controlled door
Windowfront cemented windscreen/rear cemented windscreen, push-pull side window
FloorDriver's area: common covering. Passenger's area: plastic board with covering
Seat19+1,19 plastic passenger seat, 1 adjustable driver seat
Air conditioner SystemNO
Heating SystemNO
Defrost SystemNO
Handrail & RingPainted handrail
Audio & VisualVehicle MP3 player
Rear View SystemKW20 Common rear view mirror
LampCombined headlamp and round Tail Lamp
WiperA pair of Rain Wiper
Servcie FacilityFire Extinguisher,fan,microphone
OtherDomestic Painting



What is CBU, SKD, CKD?





CKD = Completely Knocked down parts . All materials supplied loose for final welding and final assembly, or raw body shell and all other parts loose and not assembled.



SKD I = Semi knocked down parts. Car body and trucks cabin are unpainted. The engine, gearbox, axles, suspension, driveshaft, steering, seats, tyres, batteries, exhaust system, electrical, etc. are supplied as individual units for assembly.



SKD II = Car body is fully painted and glazed. Truck cabin is fully painted. The engine, gearbox, axles, suspension, driveshaft, steering, seats, tyres, batteries, exhaust system, electrical, etc. are supplied as individual units for assembly. (SKD-II term may as start phase, it is just need a little equipment(USD50000) to accomplish assembly auto.)





How is a bus made?

•1 A bus is made of hundreds of different components. Many of these components are premanufactured by companies other than the bus manufacturer. Some components are premanufactured by companies that are owned by the bus manufacturer.

• 2 The chassis is assembled and the body formed. After the body has been assembled, it is painted.

liquid tin causes the molten glass to be transformed into a solid with a flat, smooth surface as it cools. The glass is then quickly heated and cooled to strengthen it, a process known as tempering. Two layers of the tempered glass are bonded to a layer of clear, hard plastic under heat and pressure to form laminated glass.

• 3 Tires are made by mixing rubber, carbon black, sulfur, and other chemicals together and heating the mixture to form a single compound. Sheets of this rubber compound are wrapped around a rotating drum and glued together to form a tire without treads. This preliminary tire, known as a green tire, is made up of many layers of the rubber compound of many different shapes.

The green tire is then placed in mold, which contains treads on its inner surface. An inflatable bladder is placed inside the tire. The mold is closed and the bladder is filled with steam. The heat and pressure of the steam causes the green tire to take on the shape of the tread pattern inside the mold. The bladder is deflated, the mold is opened, and the treaded tire is allowed to cool.



• 4 Small metal components are made by using a variety of precision metalworking machines such as drills and lathes. Some metal components, such as those made of aluminum, may be made by melting the metal, pouring it into a mold in the shape of the desired component, and allowing it to cool.

• 5 Plastic components may be made by injection molding. This process involves melting the plastic into a liquid and forcing it into a mold under pressure, where it cools into the desired component.



Once assembly of all parts is complete, the chassis and body are put together.





Making the chassis

• 6 Steel arrives at the bus factory in the form of sheet metal of the desired thickness. Various cutting and stamping tools are used to produce pieces of steel of the proper shape and size. These various pieces are bolted together as the chassis moves along an assembly line.

• 7 The frame (the base of the chassis) is bolted together from pieces of steel as assembly begins. As the frame proceeds along the assembly line, the suspension system is attached. Next, the brake and exhaust systems are attached. The engine is then installed, followed by the drive shaft and the wheels, including tires.

The motorized part of the school bus is now completed. A temporary driver's seat can be attached at this point to allow the chassis to undergo a preliminary driving test.





Making the body

• 8 Like the chassis, the body of a school bus is made of components, which have been molded from sheets of steel of the proper thickness. The various pieces of steel are bolted together or welded together as the body proceeds along an assembly line similar to the chassis assembly line.

• 9 Steel panels are assembled together to form the bottom, sides, and top of the body. The doors are then joined to the body.

• 10 The body is cleaned with soap and water, then treated with phosphate to protect it from rust. A coat of primer is sprayed on the body and baked dry in a large oven. Next, a coat of paint is sprayed on and baked dry in a similar manner.

• 11 Windows are installed in the body. Interior components such as the instrument panel and the seats are then installed. External components such as the door handles and lights are also installed at this point.



Assembling the bus

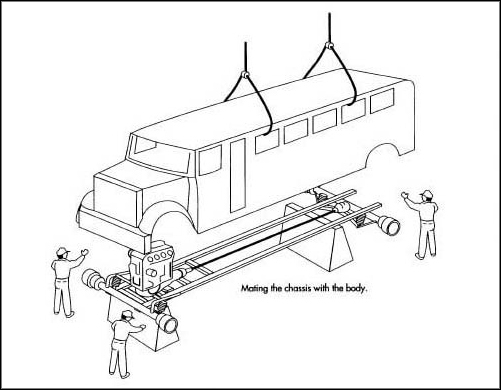

• 12 The body is lifted by a large crane and placed on top of the chassis. The two parts are then bolted together to produce the school bus. Final adjustments such as connecting the electrical wiring are made. The school bus is inspected and shipped to the consumer on special trucks designed to carry large motor vehicles.

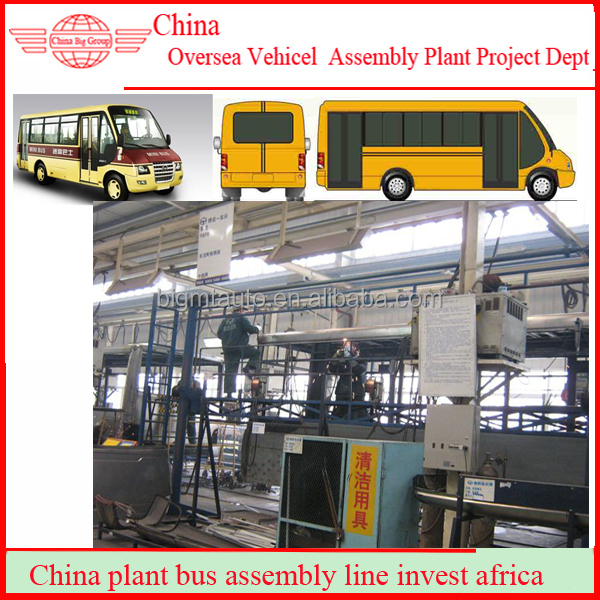

How does this simple bus assembling plant work?

Preparation workshop → Welding workshop → Painting workshop → Chassis workshop → Final assembling workshop

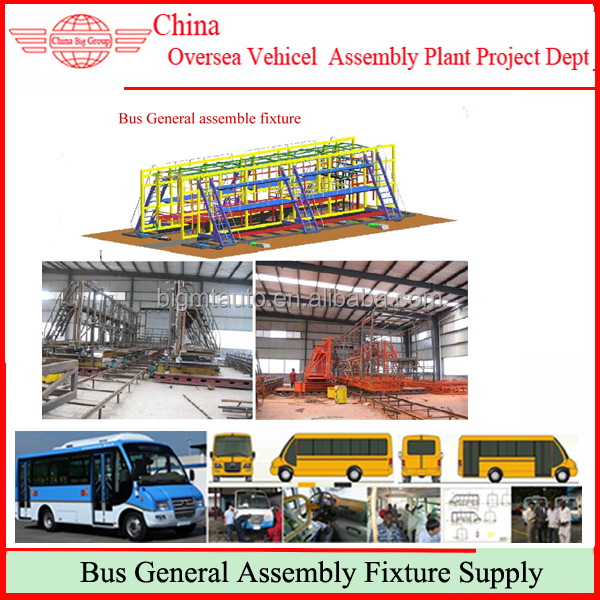

General Assembly Fixture

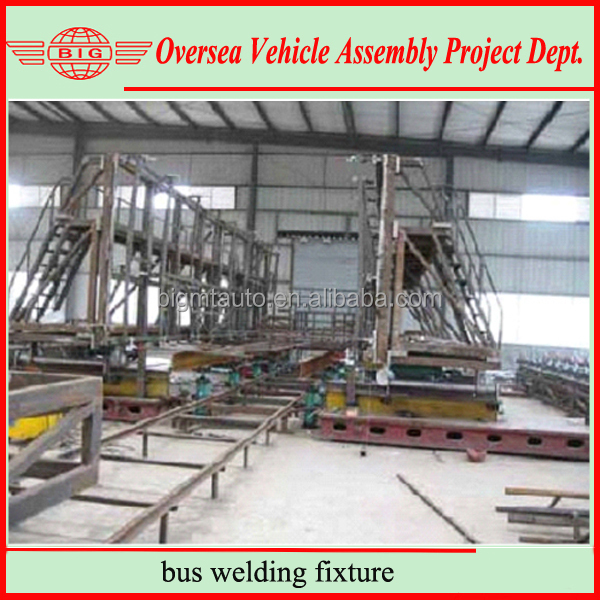

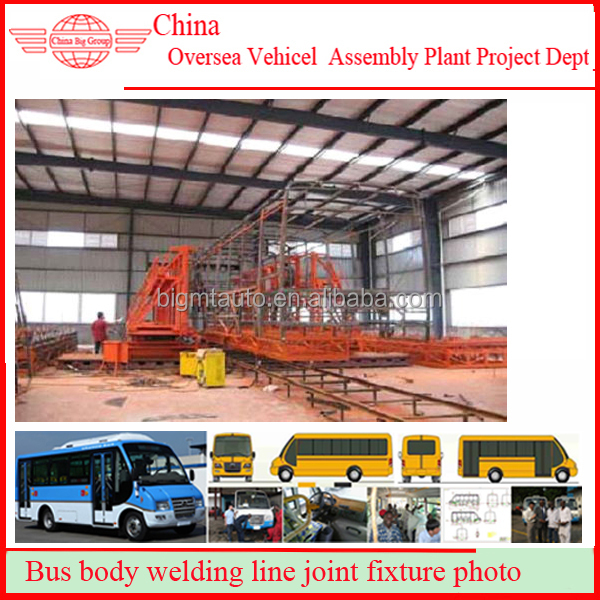

Bus Body Shell Welding Fixture
